SES involvement in the parking system is based on our 20 years experience in handling access control for buildings . Our client based are always seeking for an integrated vehicle access system that caters for paid parking therefore we are inclined to commercialized our own parking system under the brand Pro-Tech parking.

With our Pro-Tech System, parking operators and building owners are able to equipped their parking space with control mechanism that allows them to generate income based on their set business model.

Pro-Tech Parking System consist of various components that allows our client to pick and choose based on their requirement. This allows them to stay competitive even if they have a small space.


Pro-Tech Parking System :

  1. Central Control and Payment System
  2. Ticket Dispenser
  3. Autopay Station
  4. Exit Station
  5. Vehicle Barrier

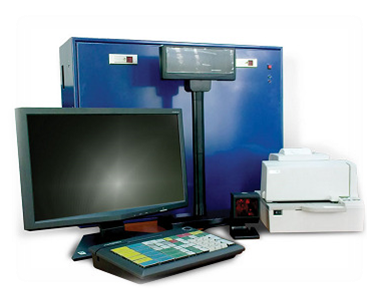

Central Control and Payment Station (CCPS)



Consist of 3 main components known as CP200, PS200 and CDE200. CCPS can be complemented with optional hardware such as cash drawer, desktop laser barcode reader, desktop VFD fee display and ticket replacement issuer machine.


Provides the following features:

  1. Configuration of devices with the parking solution.
  2. User Setup
  3. Setup and Maintenance of ticketing rate packages
  4. Define public holiday &Pre-schedule rate tariff
  5. Configuration of GST rates
  6. Setup of new season card
  7. Season card maintenance & listing
  8. Season collection at office
  9. Ticketing report summary / detail
  10. Collection Report summary / detail
  11. Season Report summary / detail
  12. System & Activities Audit Report
  13. Car Flow Analysis & etc

Ticket Dispenser



Provides the first impression when a patron enters a parking area. It is designed to meet to the requirement of unattended ticket dispensing and fufil the variety of parking fee structure.

Pro-Tech Parking ticket dispenser and exit station provides for various types of solution including Thermal Ticketing, Contactless Card, and Payment Card (Credit Card & Touch ‘n Go). Its front is protected with a stainless steel panel for anti vandalism purposes.


Features:

  1. Fast ticket printing with heavy duty ticket printer.
  2. Dual mode operation, online and standalone.
  3. Filtered air ventilation with dual heavy duty fan to prevent overheating.
  4. Economical ticketing consumables.
  5. Flexible options on features for future upgrading.
  6. Supports smart card dispensing.
  7. Supports multiple ticket type and parking rates.
  8. Logo and short messages display.

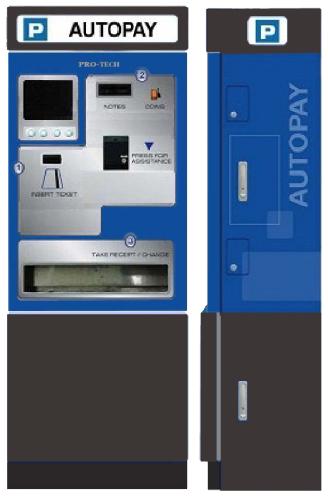

Autopay Station



Provides self service option for patrons to pay for their parking fees at ease. The station avoids heavy traffic at exits and provides smoother experience for the patrons. Parking operators will be able to reduce their operational and labor expenses.The kiosk is able to provide automatic calculation and display parking fees, accepts payment is various medium selected such as coins, cash note and membership card.


Features includes the following:


  1. Single Barcode Ticket System – single ticket for Entry, Payment and Exit
  2. Highly reliable and reputed MEI’s Bank Note Acceptors
  3. Accept RM1.00, RM5.00, RM10.00 Bank Note types with 4 Way insertion
  4. Capacity to store up to 1,200 Bank Notes and 1 x lockable Cash Cartridge
  5. Swappable cartridge design for conveniences in banknote handling.
  6. 2x Capacity to store up to 1,500 coins and lockable Hopper (Std Version, Note Dispenser upgrade may reduce the hopper quantity)
  7. Economical thermal paper roll for receipt printing
  8. Multiple security door locking mechanisms.
  9. Secured Cash Management and Handling module (Optional)
  10. Payment validation on paid ticket (optional)
  11. Multimedia with voice and sound for payment operation (Optional)
  12. Upgrade to season collection module allowed APS to receive Season fees (Optional)

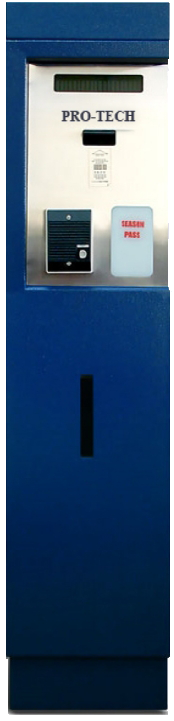

Exit Station



Designed to meet the requirement of unattended parking terminals. It provides controls for exiting points and is fully automated to accept, read and validate authenticity of paid tickets.

Pro-Tech Parking exit station supports various types of solution including Thermal Ticketing, Contactless Card, and Payment Card (Credit Card & Touch N Go). Its front panel is protected with a stainless steel panel for anti vandalism purposes.

Features includes the following:

  1. Motorized 2 way insertion barcode ticket acceptor.
  2. Dual mode operation, online and standalone.
  3. Filtered air ventilation with dual heavy duty fan to prevent overheating.
  4. Flexible options on features for future upgrading.
  5. Logo and short messages display.
  6. Accepts Season fees (Optional)

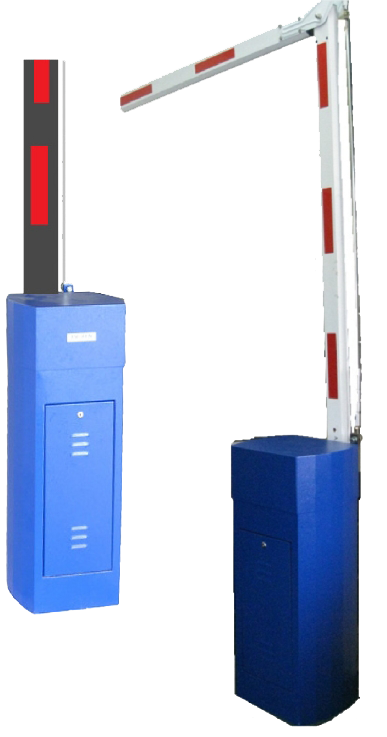

Vehicle Barrier



The vehicle barrier that we offer is a 3-metre to 4.5-metre length barrier that is designed to secure the entry and exit of vehicles, with weatherproof feature to be able to operate in any weather condition. On top of that, we design our vehicle barrier to be unaffected by dust and prevents fluids from seeping through in all its parts.


Features includes the following:

  1. 5mm zinc plated sheet steel housing and power coat finish for maximum protection from corrosion.
  2. Long lifespan & maintenance free synthetic based oil lubricant components with in-built smart gate technology to ensure up time & safety on your operation needs.
  3. Powered by world class motor & gearbox to ensure durability and performance (100% duty cycle).
  4. Support straight rectangle, hollow cylindrical tube and folder aluminum arm with red reflective tapes for difference requirement & installation needs.
  5. Loop detector unit design to allow easy integration of existing barrier gates system and upgrade of Anti-Gating Module. It comes with loop box and loop detector.
